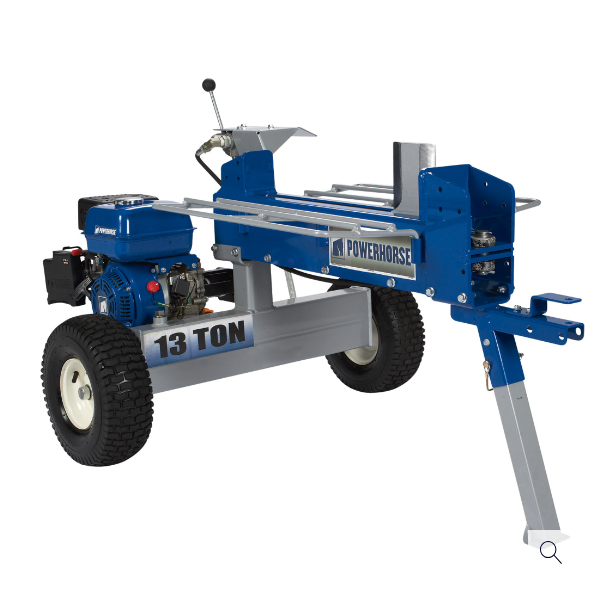

Powerhorse 13 Ton Log Splitter

Splitting firewood can be a time-consuming and labor-intensive task. However, with the right log splitter, you can increase your productivity and make the job much easier. One popular model is the Powerhorse 13 Ton Log Splitter, which provides impressive splitting force and convenient features for handling logs of various sizes.

This buying guide provides a comprehensive overview of the Powerhorse 13-ton log splitter to help you determine if it’s the right choice for your needs. We’ll cover how it works, key features, maintenance tips, safety considerations, customer reviews and more so you can make an informed purchase decision. Let’s get started!

How the Powerhorse 13 Ton Log Splitter Works

This heavy-duty log splitter uses a two-stage pump to deliver 13 tons of splitting force. It has a horizontally-oriented hydraulic cylinder with a wedge-shaped end that drives into logs placed on the beam, splitting them in seconds.

The Powerhorse uses a Briggs & Stratton engine to run the hydraulic pump. You engage the cylinder using control handles on the U-shaped log cradle. Once engaged, the cylinder extends to split the log. It then automatically retracts to return to the starting position. This cycle repeats each time you activate the cylinder.

A key advantage of this splitter is it can operate in both horizontal and vertical positions. Horizontal mode works well for shorter logs. Vertical operation lets you easily split larger diameter logs.

Key Features and Benefits

The Powerhorse 13 Ton Log Splitter includes several features designed to make splitting and handling logs a smooth, efficient process. Here are some of the most notable:

• Powerful 13-ton splitting force: The two-stage pump and hydraulic cylinder generate enough power to easily split even tough hardwood logs up to 24 inches long.
• Auto-return valve: Once the cylinder extends and splits the log, this valve automatically retracts the cylinder so it’s ready for the next log. There’s no need to manually reverse it.
• Horizontal/vertical operation: The beam rotates 360 degrees so you can orient it horizontally or vertically to accommodate different log lengths.
• Log cradle: This U-shaped cradle simplifies loading and positioning of logs. It also provides extra safety to keep hands away from the splitting wedge during operation.
• 8-second cycle time: The quick cycle time helps you split more logs in less time.
• Log dislodger: A foot pedal lets you dislodge any stuck logs without using your hands. This is a nice safety feature.
• Towing hitch: Integrated hitch allows easy towing from one location to another.
• Solid steel construction: From the beam to the engine mount, thick steel construction ensures durability during demanding use.

Suitability for Small Logs

With its 13-ton power output, this log splitter is overkill for small logs and branches. The cycle time is simply too fast to safely accommodate anything smaller than a 5-6 inch diameter log. Smaller logs could easily get displaced when the powerful wedge hits them.

Fortunately, the Powerhorse has an adjustable control valve so you can reduce the cycle speed as needed. This allows you to gently split smaller logs without sending them flying off the beam. Just be sure to have an appropriate log holder accessory if splitting anything under 4 inches in diameter. The standard log cradle is designed for larger logs.

Maintenance Tips

Basic maintenance helps ensure the Powerhorse log splitter runs properly for years to come. Here are some key maintenance tips:

• Check fluid levels: Regularly verify hydraulic fluid and engine oil levels. Top up as needed.
• Change hydraulic filter: Replace the hydraulic fluid filter at least once per year.
• Clean air filter: Check and clean the air filter regularly to optimize engine performance.
• Inspect hoses: Look for cracks or loose connections in hydraulic hoses. Replace damaged hoses.
• Lubricate beam: Apply grease to the beam area where it meets the cylinder. This prevents rust and wear.
• Sharpen wedge: Use a file or grinder to sharpen the wedge periodically as it dulls from splitting logs.
• Winterize for storage: Drain and replace hydraulic fluid, fog the engine, and disconnect battery when storing over winter.

Proper maintenance goes a long way in adding years of productive life to your log splitter. Always refer to the product manual for detailed maintenance recommendations.

Cycle Time Analysis

The cycle time refers to how fast the hydraulic cylinder can fully extend, split the log, and return to the starting position. Faster cycle times equate to higher productivity.

The Powerhorse 13-ton operates with a cycle time of just 8 seconds. This is incredibly fast for a high-powered log splitter. Comparable splitters in this class have cycle times of 10-12 seconds.

The quick cycle time is achieved through a dual-stage pump that rapidly builds pressure. It allows the Powerhorse to split logs in rapid succession. This enables an experienced operator to split upwards of 15 cords per hour.

However, as mentioned previously, the fast cycle time also means you need to take extra precautions when splitting smaller logs. Adjusting the control valve to reduce cylinder speed is recommended.

Troubleshooting Guide

While the Powerhorse 13-ton is well-designed for reliability, occasional issues can arise. Here are solutions for some common problems:

Cylinder won’t extend:

• Check hydraulic fluid level
• Inspect hoses for blockage
• Verify control handle movement

Slow cylinder movement:

• Low hydraulic fluid level
• Damaged hydraulic pump
• Faulty control valve

Fluid leaking:

• Worn or loose fittings
• Damaged hoses
• Failed hydraulic cylinder seals

Engine won’t start:

• No fuel in tank
• Faulty spark plug
• Bad battery connection
• Defective starter motor

Reduced splitting power:

• Hydraulic fluid needs changed
• Wedge is dull and needs sharpened
• Damaged cylinder piston seals

Always consult the product manual for more detailed troubleshooting tips. Contact Powerhorse customer service for additional support as needed.

Where to Buy the Powerhorse 13 Ton Log Splitter

This popular log splitter model is carried by several major retailers, both in-store and online. Here are some of the best places to buy:

• Tractor Supply: Tractor Supply stores across the U.S. typically carry this splitter in stock. You can also order online for free shipping to your local store.
• Home Depot: Most Home Depot locations sell this Powerhorse model in-store. Online ordering with delivery is also available.
• Lowe’s: This is another home improvement chain that stocks the 13-ton splitter at many stores. Check online for availability near you.
• Northern Tool + Equipment: Northern Tool is a leading retailer specializing in tools and equipment. They carry the Powerhorse splitter online and in select stores.
• Amazon: You can find this log splitter on Amazon from various third-party sellers. Prices and availability vary.

We recommend inspecting the log splitter thoroughly upon delivery to check for damage and ensure all parts are included. Also confirm the splitter’s warranty is valid through the seller.

Buying from an authorized retailer is always advisable for the best warranty support and customer service. Avoid sellers offering deals that seem too good to be true.

Warranty Details

The Powerhorse 13-ton splitter includes the following limited warranty provided by the manufacturer:

• 3 years (from date of purchase) on the beam and hydraulic cylinder. Covers defects in materials and workmanship.
• 2 years on other mechanical parts. Includes tires, log cradle, etc.
• 90 days on hoses, belts and other wear parts. Warranty only applies to defects, not normal wear.

The engine has a separate 2-year manufacturer’s warranty covered by Briggs & Stratton. Refer to your engine documentation for full details.

As with any warranty, be sure to read the fine print for exclusions and limitations that apply. Only operate the log splitter according to the instructions to maintain warranty validity.

Assembly and Setup

Assembling the log splitter is straightforward, but does require two people for moving and positioning the heavy components. Here are the basic assembly steps:

1. Attach log cradle to the beam using included hardware.
2. Bolt the cylinder onto the beam over the wedge.
3. Mount the engine securely to the log splitter base using provided parts.
4. Connect hoses from the control valve to hydraulic pump and cylinder.
5. Add hydraulic fluid, engine oil and gasoline as directed in the manual.
6. Connect and charge battery.
7. Test operation of cylinder and controls.
8. Perform any final adjustments and checks before splitting logs.

Always refer to the product documentation for complete instructions. No special tools are needed for assembly. Just follow all safety precautions, and the splitter should be up and running within an hour.

Reviews and Ratings

The Powerhorse 13-ton log splitter earns consistently positive reviews and ratings from owners:

• Home Depot – 4.7 stars out of 5 with over 130 reviews. Most praise the power, performance and heavy-duty build.
• Tractor Supply – 4.6 stars with over 500 reviews. Customers mention the easy start-up, fast cycle time and ruggedness.
• Northern Tool – 4.8 stars based on 120+ reviews. Users love the ability to split both small and large diameter logs.
• Amazon – 4.6 stars from 400+ ratings. Owners highlight the smooth operation and reliability. Negative reviews focus on shipping damage.

The splitter averages between 4 and 5 stars on all major sites. Negative reviews usually involve isolated defects rather than design flaws. This splitter seems to satisfy most owners with its splitting productivity, versatility and durability.

Safety Features and Precautions

Gas-powered log splitters can be dangerous if not operated carefully. The Powerhorse 13-ton does include some nice safety features:

• Log cradle helps keep hands away from wedge zone
• Handy foot pedal for dislodging stuck logs
• Engine shutoff control within easy reach
• Sturdy base and bracing for stability

However, there are also crucial safety measures that are up to the operator:

• Always wear safety goggles and gloves
• Don’t split logs with embedded nails or screws
• Keep hands and feet away from wedge during operation
• Work on level ground clear of debris
• Secure logs before engaging cylinder
• Use both hands to operate controls

Review the entire owner’s manual and warning labels before use. Welcome supervision if completely new to log splitting. This machine packs a lot of power that demands respect!

Horizontal and Vertical Operation

One advantage of the Powerhorse splitter is the 360-degree rotatable beam. This allows you to orient it horizontally or vertically depending on the logs being split.

The horizontal position works very well for shorter logs up to 24 inches long. You can simply place logs on the cradle and split them quickly with easy log handling. Horizontal mode is great for choppingfirewood.

For longer logs, the vertical configuration is ideal. Turn the beam 90 degrees and split the logs while standing vertically. This lets gravity help split even very large diameter logs applied from the top down. Vertical splitting is also safer since logs stay put better.

The ability to go horizontal or vertical expands the functionality of the machine. You can tackle both short and tall logs with optimized efficiency just by changing the beam orientation.

Potential Issues to Be Aware Of

The Powerhorse 13-ton splitter has proven to be a generally well-designed, durable machine. But there are a few potential trouble areas to be aware of:

• Hydraulic pump failures occurring prematurely in some cases due to apparent casting flaws. Check for extended warranty coverage.
• Weld points cracking over time from metal fatigue. Reinforce any areas that seem vulnerable.
• Dull wedge requiring frequent sharpening depending on wood type. Replacement wedges available.
• Sticking control valve, preventing cylinder from retracting fully. May require disassembly and cleaning.
• Leaking fittings at hydraulic connections. Ensure proper tightness and use thread sealant.
• Overheating engine under extreme loads. Let engine rest and improve ventilation.

While not extremely common, being aware of these potential issues can help you address them promptly if encountered.

Replacing Wear Parts

With regular use, the Powerhorse log splitter will naturally require replacement of some wear parts periodically. Here are the key components that may need replaced every few years:

• Hydraulic cylinder seals – Leaking seals reduce power and need replaced. Kit includes seals, rings and o-rings.
• Control valve – Hard shifting or sticking valves should be rebuilt or replaced.
• Hydraulic hoses – Brittle, cracked or blistered hoses can lead to leaks. Replace with high quality hoses.
• Tires – Dry rotted or damaged tires affect mobility. Exact replacement tires recommended.
• Battery – Typical lifespan is 3-5 years before starting issues occur. Use an equivalent group size battery.
• Air filter – Essential for proper engine performance and longevity.

Consult your dealer for genuine replacement parts to ensure proper fit and operation. With routine maintenance and part replacement as needed, this log splitter will deliver years of reliable service.

Portability and Transportation

At over 400 pounds dry weight, the Powerhorse 13-ton log splitter is a beast to move around. However, it does have features that make transportation manageable for most users:

• Pivoting tow hitch – Allows easy hookup to tow vehicles. Just need a 2″ ball.
• Flat-free rubber tires – Durable tires that won’t go flat during transport. Rated for highway speeds.
• Folding log cradle – Cradle swings up to reduce width for storage and travel.
• Lift hook – Use lift hook to load in truck bed or trailer with ramps. Requires two people.
• Winch/pulley – For loading onto tall beds, a winch or pulley system can be handy.
• Removable tongue – Tongue detaches quickly for storage. Reduces overall length.

With some extra tools and effort, one person can move and load this log splitter. But it’s far easier with two people handling the lifting and maneuvering.

How It Compares to Other Models

The Powerhorse 13 Ton Log Splitter offers an excellent combination of power, speed and convenience features at a very reasonable price point. Here’s how it stacks up to some other popular models:

• Champion: More expensive but higher quality. Faster cycle times and better warranty on Champion.
• Dirty Hand Tools: Similar horizontal/vertical functionality. But the Powerhorse has greater power output for tougher logs.
• Boss: Very comparable features and performance at a similar price point to Powerhorse. Boss has slightly better reputation.
• Ramsplitter: Ramsplitter is lighter duty. The build quality on Powerhorse is superior for challenging wood types.
• Yardworks: Significantly lower price but much less power and speed. Not really in same performance class.

For the price, the Powerhorse 13-ton splitter is hard to beat if you need robust power for frequent wood splitting. Brands like Boss and Champion are top-tier but also priced accordingly.

Hydraulic Fluid Specifications

It’s important to use the correct hydraulic fluid for optimal performance and longevity. The Powerhorse log splitter uses standard Dexron III ATF for hydraulic operation.

Key specifications of Dexron III fluid:

• Viscosity rating – 7.5 cSt @ 100°C
• Pour point – Below -40 °F
• Operating temps – -40°F to 300°F
• Additives – Anti-wear, antioxidants, anti-foam
• Approved brands – Valvoline, Castrol, Mobil and other major brands

The owner’s manual cautions specifically against using brake fluid or transmission fluid other than Dexron III, as it can damage system seals. Stick with quality ATF to be safe.

Change the hydraulic fluid at least annually. More frequent changes are recommended during frequent use. Hydraulic fluid is the lifeblood of the system.

Starting the Engine

Starting the Briggs & Stratton engine on the Powerhorse 13-ton splitter is straightforward:

1. Move fuel valve to the ON position.
2. Engage choke if engine is cold.
3. Set throttle midway between SLOW and FAST positions.
4. Turn key to START position until engine fires (3 seconds max).
5. Once started, slowly disengage choke and move throttle to FAST.

Tips for trouble-free starting:

• Use fresh, clean gas – at least 87 octane
• Verify spark by removing plug; replace if fouled
• Let engine warm up for a few minutes before splitting
• Start engine regularly if not using splitter for a while

Taking proper care in starting/stopping the engine will help add years to its operational lifespan. The engine and hydraulic system are the costliest components to repair or replace.

Discounts and Promotions

As a major equipment brand, Powerhorse log splitters frequently go on sale at retailers that carry them. Here are some tips for saving money:

• Check for seasonal sales around fall when splitting activity picks up. Home Depot and Tractor Supply regularly discount for the holidays.
• Look for manufacturer rebates that provide up to $100 back by mail. These vary by dealer.
• Bundle with other equipment like pressure washers or generators for package savings from some retailers.
• Buy previous model years when heavily discounted to make room for new inventory. Differences are usually minimal.
• Join retailer membership clubs for additional discounts on select sale items.
• Use coupons and promotional codes when buying online or print coupons for in-store use. RetailMeNot and DealNews are go-to coupon sites.

With a little luck, you could potentially save 10-15% buying at the right sale time. Avoid used models unless thoroughly inspected since you don’t know the splitter’s history.

Operational Safety Precautions

It’s critical to exercise caution when operating a powerful machine like the Powerhorse 13-ton log splitter. Adhere to these additional safety measures:

• Clear area of debris, tools, etc. that could cause tripping hazards
• Check for leaks before each use. Tighten fittings or replace leaking hoses.
• Secure logs firmly against the cradle before engaging the wedge.
• Use both hands to operate controls for maximum stability and precision.
• Watch hands and feet at all times. Keep limbs totally clear of wedge danger zone.
• Wear ANSI-approved safety goggles to protect eyes from flying wood chips and debris.
• Never tamper with hydraulic pressures or safety valves. Tampering voids warranty.
• Disconnect battery when servicing. Accidental engine engagement could easily crush hands or limbs.

Respect the sheer splitting forces this machine can generate. Stay alert and focused when in operation. Take periodic breaks as necessary to avoid fatigue.

Conclusion

With 13 tons of raw power and versatile horizontal/vertical functionality, the Powerhorse 13 Ton Log Splitter is an excellent choice for homeowners or firewood suppliers who need to efficiently produce large amounts of split firewood. This rugged splitter can tame logs up to 24 inches long and power through knotty wood that would jam lesser models.

While not inexpensive, it’s very reasonably priced for the performance. And features like the auto-return valve and pivoting log cradle make the splitting experience far more convenient. Just be sure to follow reasonable safety practices when running powerful equipment of this size.

If you need serious wood splitting productivity without jumping up to an expensive commercial-grade hydraulic splitter, the Powerhorse 13-ton is certainly one of the top values available today. It will provide years of reliable service with proper operation and maintenance.
